2″ Square 1/2In. 3D Vinyl Lattice – DuraShell®

$128.00$194.00

DuraShell® 2″ Square 3D Vinyl Lattice Features:

  • Solid core & 3D construction which is more durable and attractive than molded plastic or hollow PVC lattice. Comparison Chart
  • Never needs painting or staining and will not rot like wood lattice.
  • Weather resilient and minimal fading.
  • Resistant to insects, mold and mildew.
  • DuraShell® protective topcoat helps minimize scuffs and scrapes.
  • 1-1/4″ x 1/4″ solid core smooth finish slats with color all the way through.
  • 1/2″ overall thickness where the slats cross and are chemically bonded.
  • Indoor or outdoor use. ASTM Test Results
  • Ideal for privacy screens, deck skirting, pergolas, trellises, gazebos and more.
  • Virtually maintenance free.
  • Limited Lifetime Warranty. Vinyl Warranty
  • Made in the USA.



Request a Sample

  • Snow White
  • Almond
  • Khaki
  • Laguna Dune
  • Platinum Gray
  • Sandtone
Clear
Architects, Engineers, Contractors, Builders & Distributors, become a member!

Check Lead Times

DURASHELL® & DECORATIVE VINYL LATTICE: Depending on size/color of order, lead times will vary. Small orders will normally take one week or less plus transit time. Once order is placed, the order confirmation will state the approximate ship date. Please feel free to contact sales@permalatt.com or 888-457-4342 to check on current lead times.

Compare

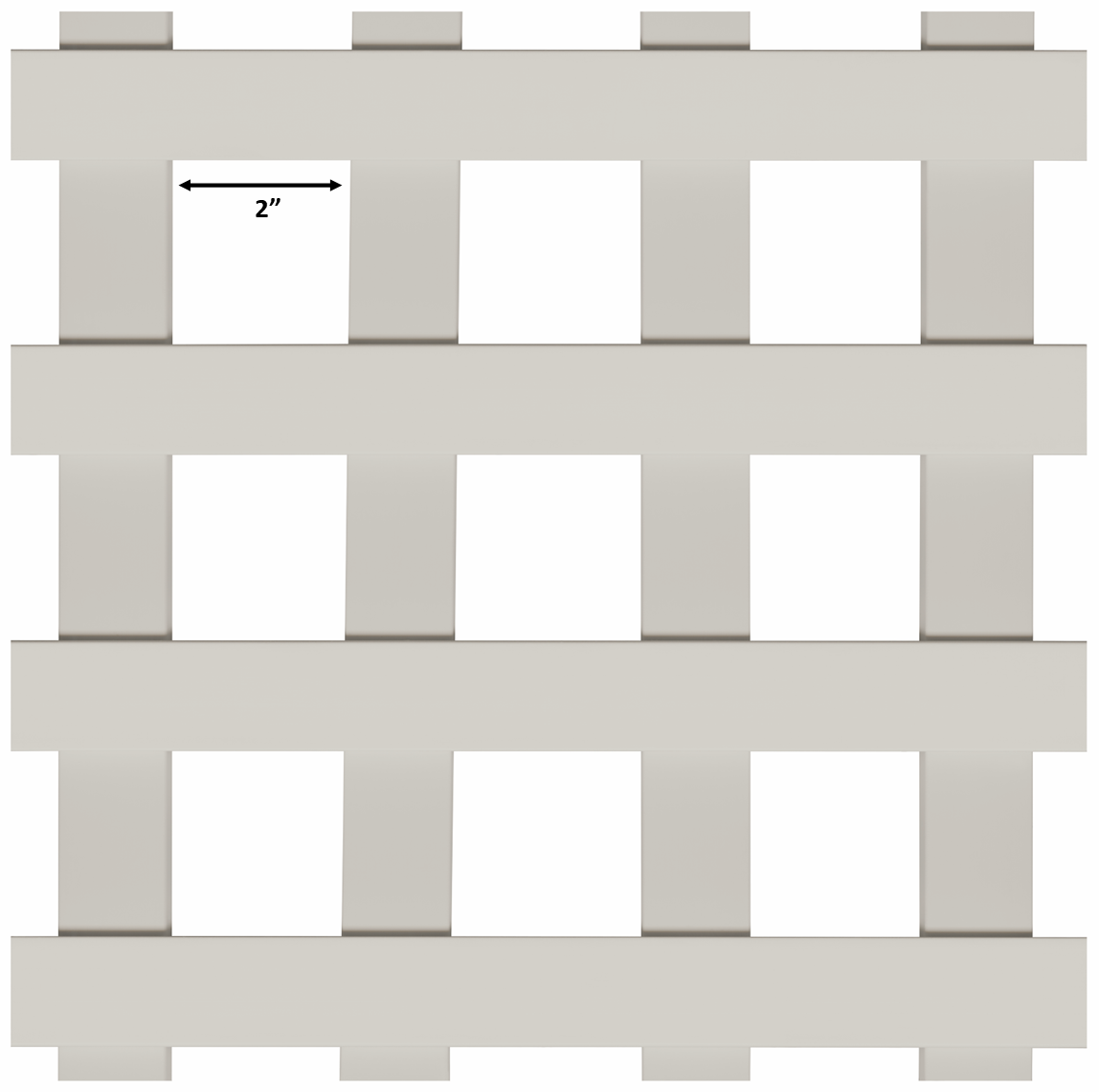

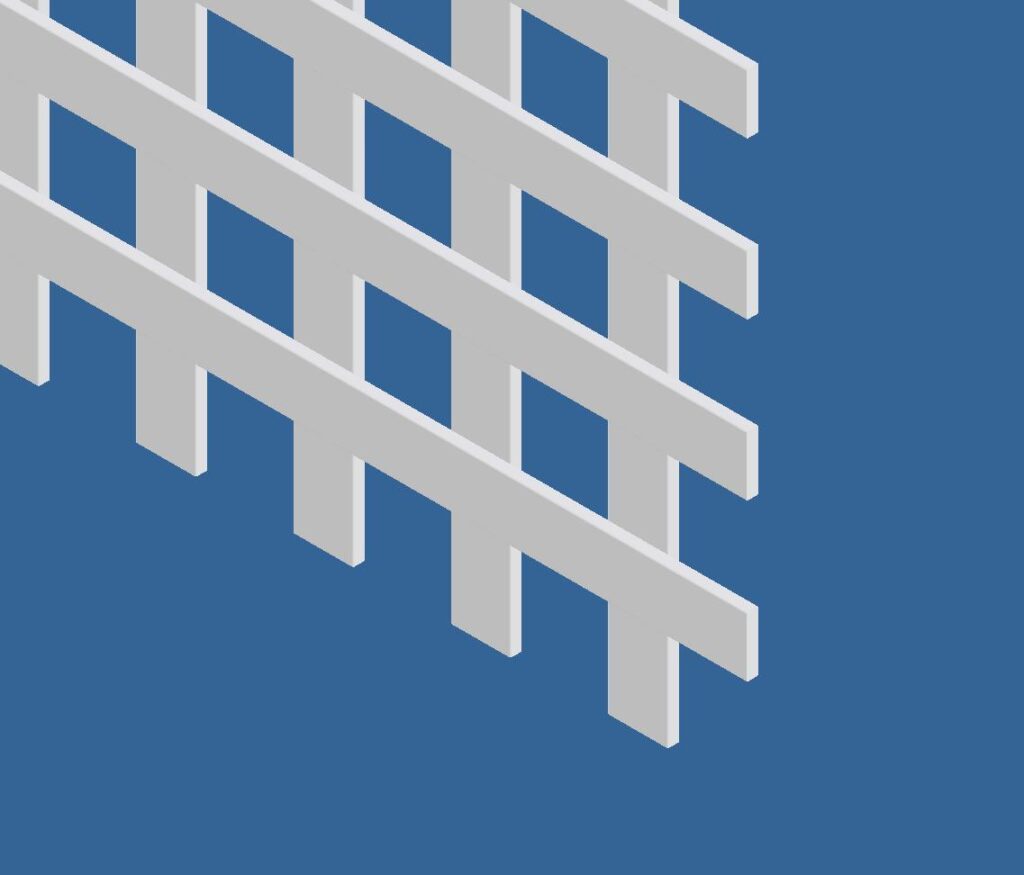

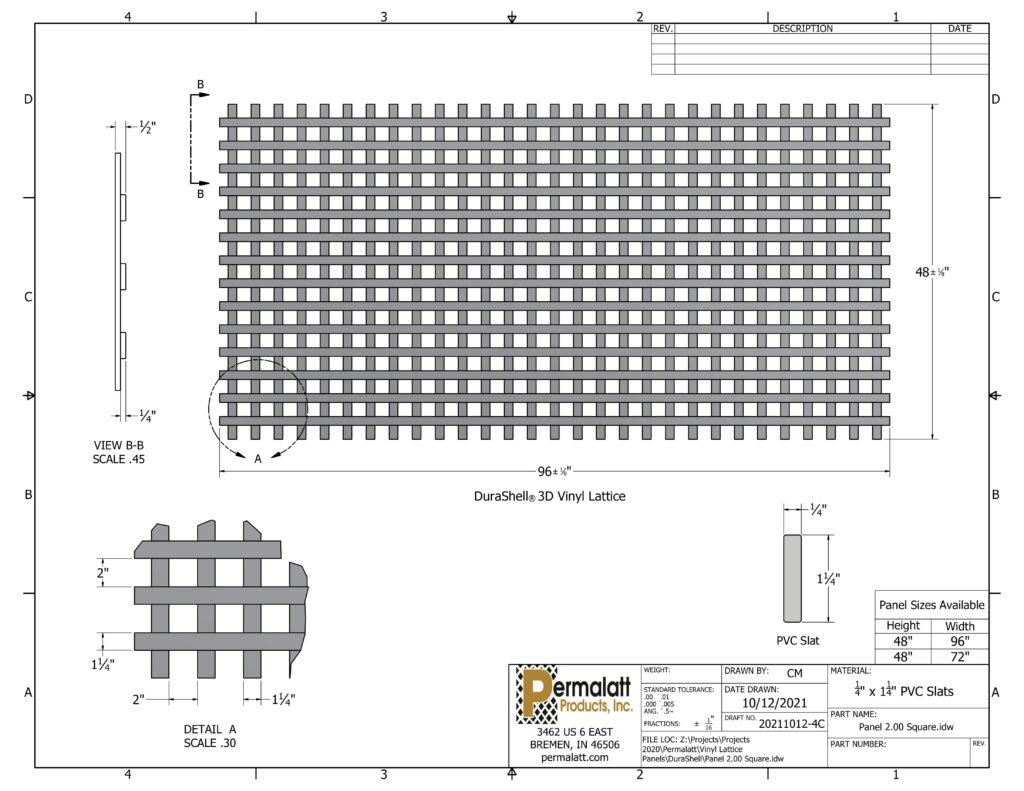

DuraShell® is our strongest and thickest vinyl lattice.  The 2″ square pattern is produced with solid core slats that are 1-¼” wide x ¼” thick (overall lattice thickness = ½” where the slats are chemically bonded together).

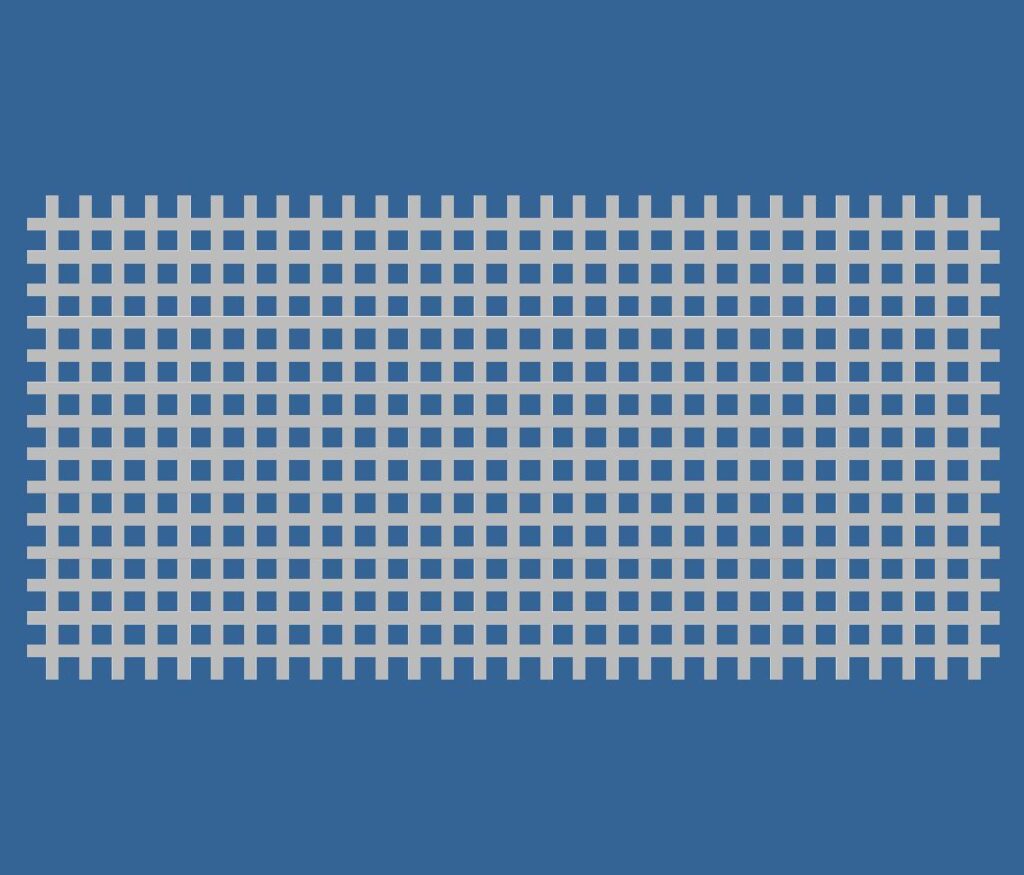

Standard sheet sizes are:

  • 4′ x 8′
  • 4′ x 6′

Custom sizes available upon request (cannot exceed 4′ x 10′).  Custom sizes over 8′ will have a longer than normal lead time in the square pattern.

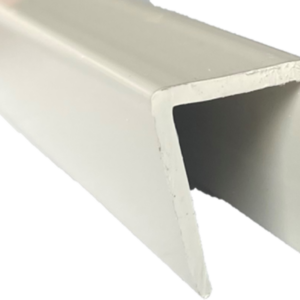

U-channels & H-channels are available in all colors.

Permalatt Products does not offer posts, rails, gate accessories or matching screws.



*** NOTE WHEN USING CHANNEL ON 2″ SQUARE LATTICE ***

The 1/2″ U-Channel will not fit tightly on the DuraShell® 2″ Square lattice sheets if the sheet is not cut down to where there are double slats.  Shims or the 1/4″ U-Channel (available in Snow White only) may be used.  1/2″ H-Channel would need to be shimmed if connecting sheets where there are single slats.



How to Install Vinyl Lattice Using Durashell – (permalatt.com)

Weight N/A
Dimensions N/A
Colors

Snow White, Almond, Khaki, Laguna Dune, Platinum Gray, Sandtone

Sheet Sizes

4' x 8', 4' x 6'

Material

1/2In. Vinyl – DuraShell®

Style

Square

Opening Pattern

2" Square

Slat Width

1 1/4"

Slat Thickness

1/4"

Overall Thickness

1/2"

SPECS





COLORS

Colors shown are a close representation of the true color.   Please consult actual samples for accurate colors. Order a DuraShell® color ring.



*Almond will be discontinued when inventory is depleted.

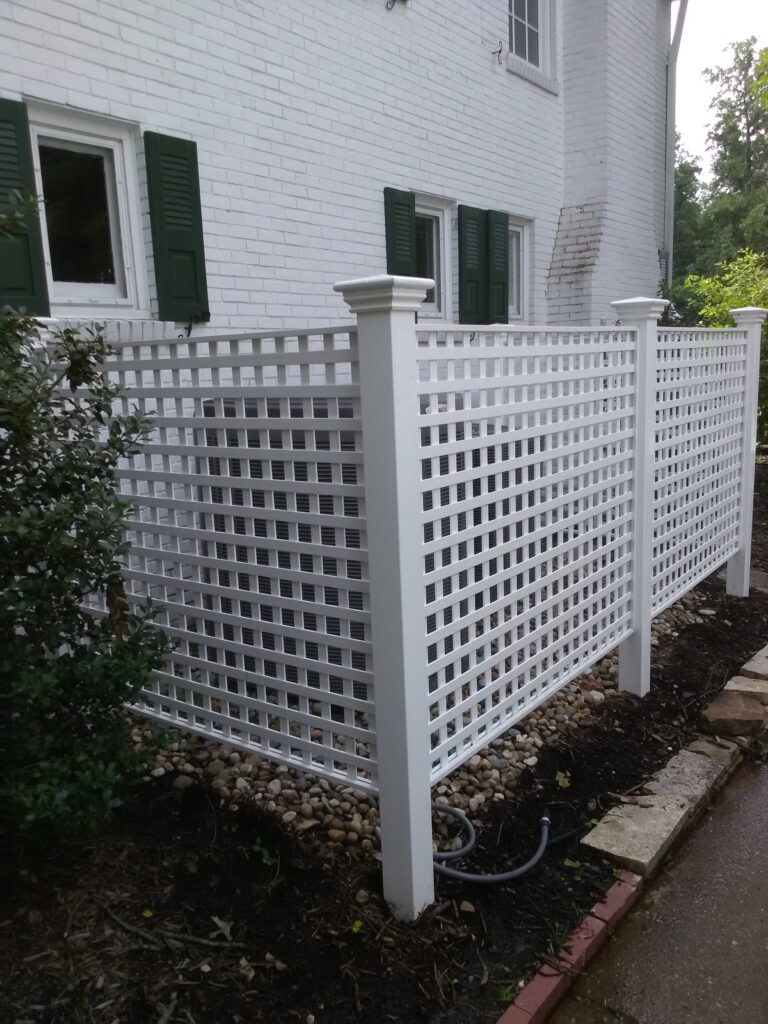

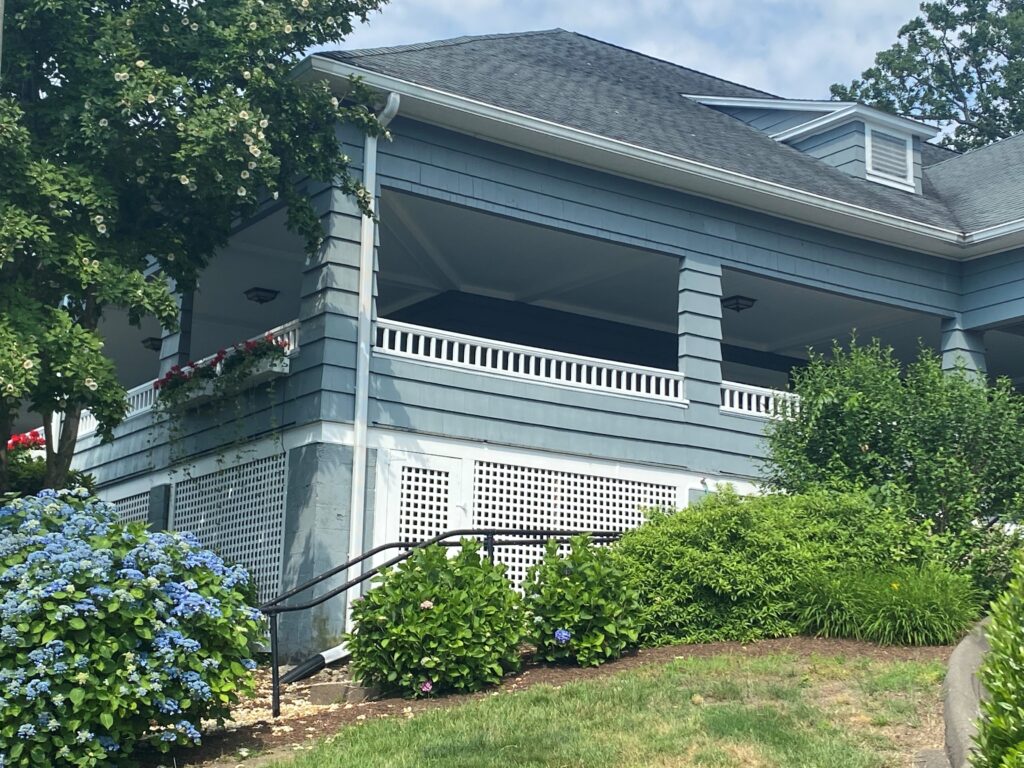

PHOTOS



Want to see more?  Check out our gallery:

http://permalatt.com/gallery/

BROCHURE

Click to see our DuraShell® vinyl brochure

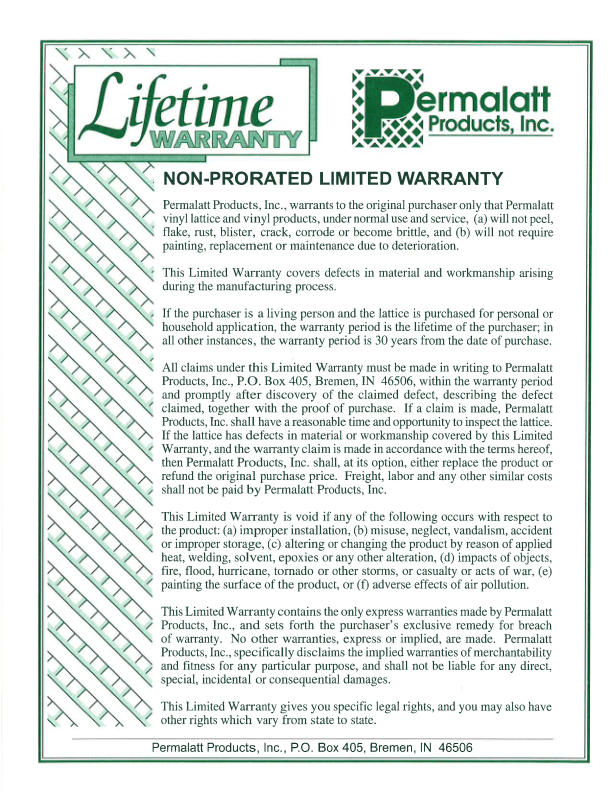

WARRANTY

VINYL LATTICE WARRANTY
