2-3/4″ Diagonal 1/2In. 3D Vinyl Lattice – DuraShell®


(Shipping Fees calculated at checkout)


DuraShell® 2-3/4″ Diagonal 3D Vinyl Lattice Features:

  • Solid core & 3D construction which is more durable and attractive than molded plastic or hollow PVC lattice. Comparison Chart
  • Never needs painting or staining and will not rot like wood lattice.
  • Weather resilient and minimal fading.
  • Resistant to insects, mold and mildew.
  • DuraShell® protective topcoat helps minimize scuffs and scrapes.
  • 1-1/2″ x 1/4″ solid core smooth finish slats with color all the way through.
  • 1/2″ overall thickness where the slats cross and are chemically bonded.
  • Indoor or outdoor use. ASTM Test Results
  • Ideal for privacy screens, deck skirting, pergolas, trellises, gazebos and more.
  • Virtually maintenance free.
  • Limited Lifetime Warranty. Vinyl Warranty
  • Made in the USA.


Request a Sample

  • Snow White
Architects, Engineers, Contractors, Builders & Distributors, become a member!

Check Lead Times

DURASHELL® & DECORATIVE VINYL LATTICE: Depending on size/color of order, lead times will vary. Small orders will normally take one week or less plus transit time. Once order is placed, the order confirmation will state the approximate ship date. Please feel free to contact sales@permalatt.com or 888-457-4342 to check on current lead times.

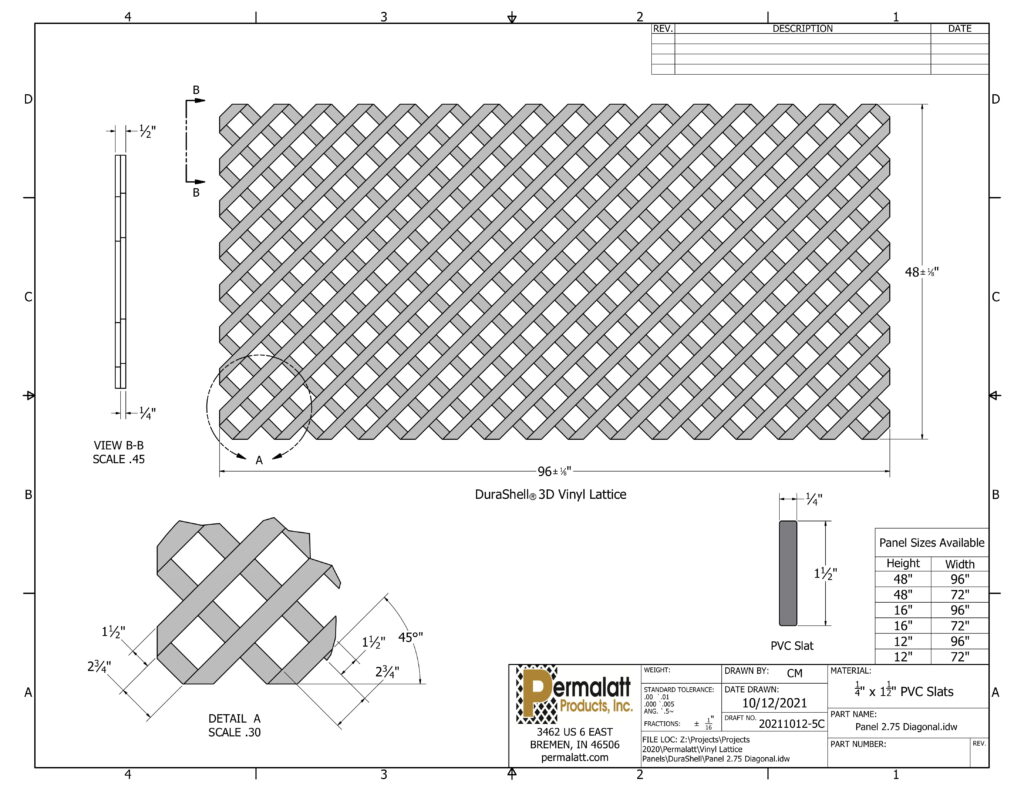

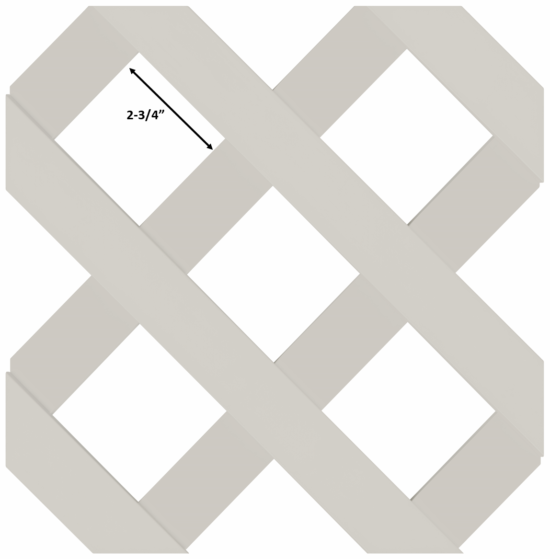

DuraShell® is our strongest and thickest vinyl lattice.  The 2-3/4” Diagonal pattern is produced with solid core slats that are 1-1/2″ wide x ¼” thick (overall lattice thickness = ½” where the slats are chemically bonded together).  Available in Snow White only.

Standard sheet sizes are:

  • 4′ x 8′
  • 4′ x 6′
  • 16″ x 8′
  • 16″ x 6′
  • 12″ x 8′
  • 12″ x 6′

Custom sizes available upon request (cannot exceed 4′ x 10′).

U-channels & H-channels are available in all colors.  Permalatt Products does not offer posts, rails, gate accessories or matching screws.


How to Install Vinyl Lattice Using Durashell – (permalatt.com)

Weight N/A
Dimensions N/A

1/2In. Vinyl – DuraShell®



Opening Pattern

2-3/4" Diagonal

Slat Width


Slat Thickness


Overall Thickness




Colors shown are a close representation of the true color.   Please consult actual samples for accurate colors. Order a DuraShell® color ring.

2-3/4″ Diagonal Lattice is available in Snow White only.

*Almond will be discontinued when inventory is depleted.

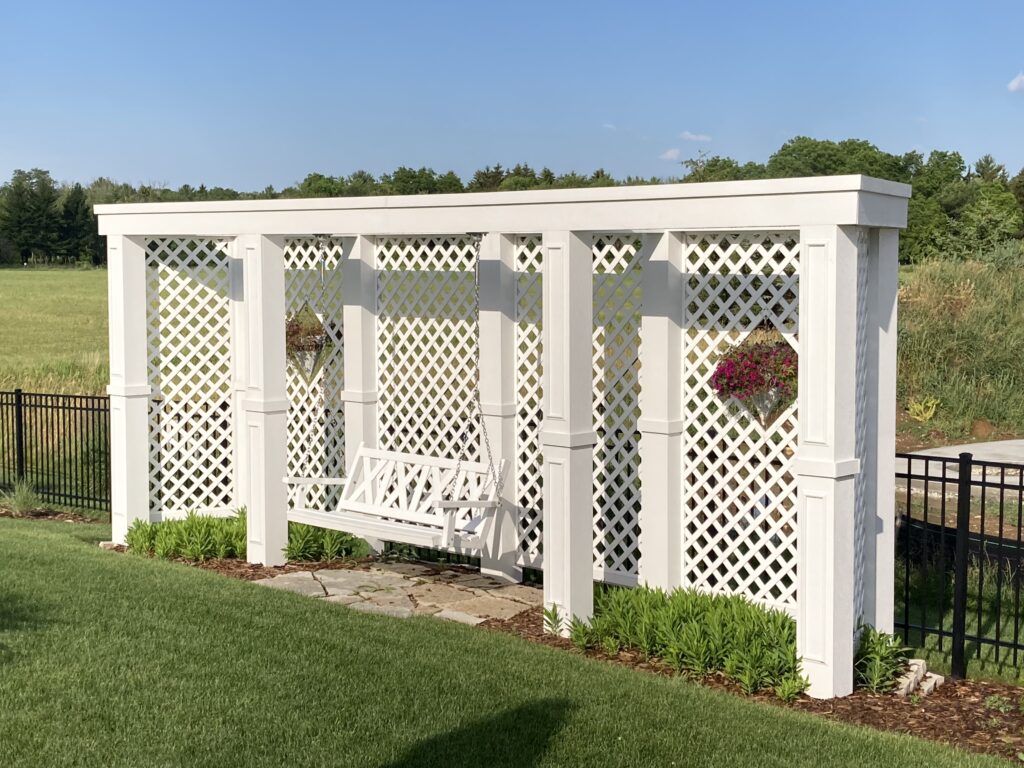

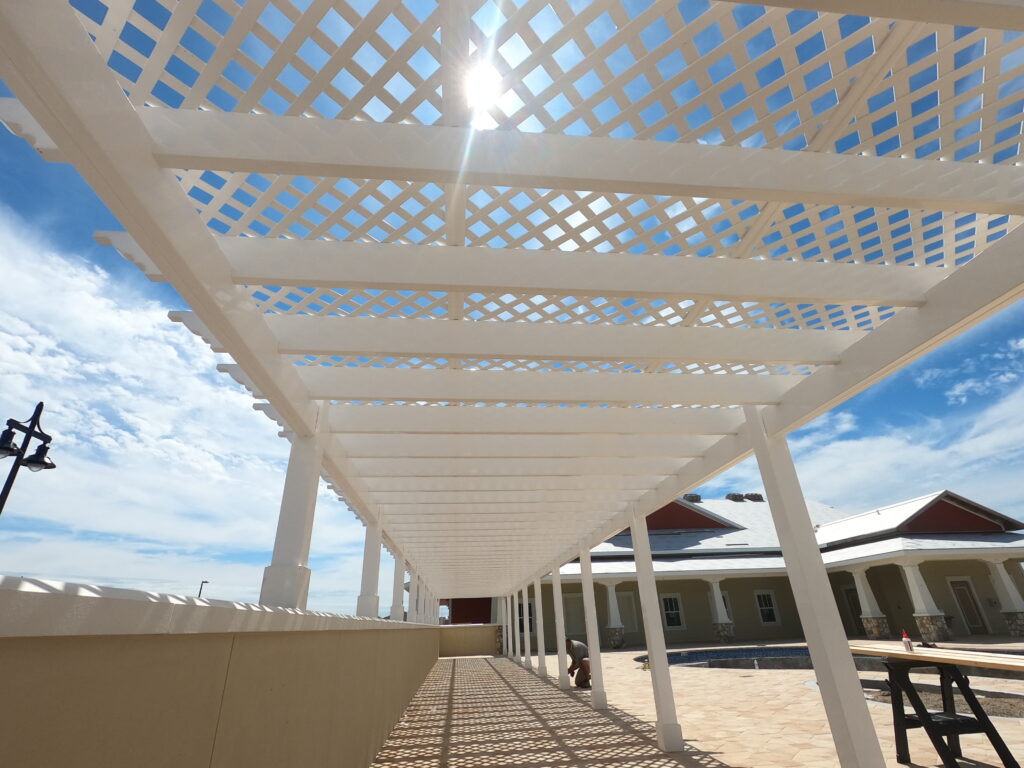

Want to see more?  Check out our gallery:



Click to see our DuraShell® vinyl brochure
